It all started with a level editor...

Well, that's a lie, it started through experimenting with the A* Path Finding algorithm in the hope of eventually making a car driven by an intelligent entity.

2 weeks ago I decided to restart work on this project, and it went something a little like this...

Step 1 - Edit, Edd and Eddy.

"Hmm, I like the idea of tiles, and Tiled is great, I wonder how I could automagically convert the 2D into 3D... wait a minute, I'll make my own!"

*sigh*, why does it seem like a good idea every, single, time?

Level editors, they're visual things.
People like me, they're impatient things.
Quickest possible way to get something visual up and running that I know of? Delphi. *sigh*. I guess I have a weak spot for the special.

Seeing as I stopped producing gold eggs a long time ago, I downloaded the latest version of Lazarus and within an hour I had something usable.

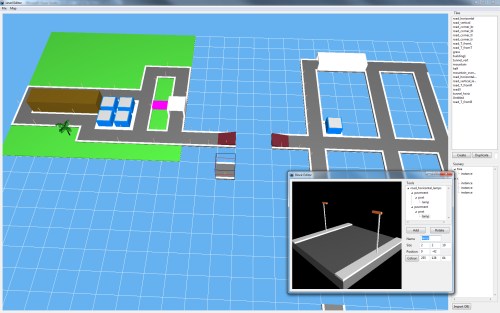

As you can (hopefully) see above, the map is made entirely out of 3D tiles. Each tile is made out of an arbitrary amount of blocks, each one building on top of the previous one, height-wise.
While the "user interface" is a bit rubbish (having to manually enter values), changes are visible throughout the map as you make them.
Placing them on the map is as simple as using the arrow keys to move around the map and hitting space to place the current tile (page up/down cycles between the available tiles).

For non-block shapes, you can import OBJ files and litter the landscape with instances of them. What's nice is that they automatically snap to the height of the tallest block in the currently highlighted tile, making placement really easy.
You can, of course, adjust them on a per-pixel basis.

It's around this time that I start thinking about integrating Lua into the editor, so that you can make plugins for loading/saving and tools... but instead decide to test whether everything works on Linux unchanged.

Huzzah! It does! Nice work FreePascal/Lazarus people!

Step 2 - Level Viewer

I knew that the only way I would ever see something from my work would be to throw my "good programmer" hat out the window into busy traffic during a heavy-agriculture-machinery trade show day.

With the joy of a thousand rabbid skunks I hacked away at some code and had a "level viewer" in no time at all and I had finally found an excuse to investigate and use SDL2.

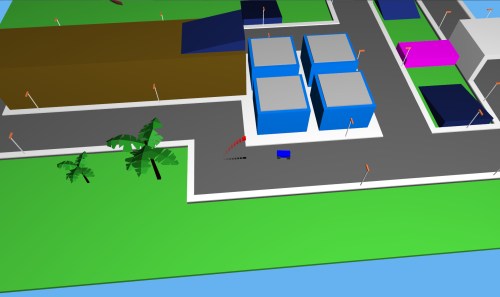

Seeing as I had a map you could move around and view from any angle, I thought it would be a pity if I just left it there...

Step 3 - Physics

... so I took the opportunity to investigate the Bullet physics engine.
The first thing I learnt about it was how horribly overcrowded the supplied examples are, and how sparse the online documentation is.

That aside, I did manage to get things up and running quickly enough to have the tiles in the level converted to static physical bodies that my new little blocky player character could run and jump on.

Adding a car was a bit tricky, the settings are a bovine to get right, and they still need some serious tweaking, but -hey-, I didn't have to code the physics engine, so I can't really complain, can I?

There's also a patch I have to make for vertex index array collision shapes, so hooray, I get to contribute!

Step 4 - Lowest of the low

I always try aim for possibly the most underpowered device still around in wide-circulation: the last thing I want is to make something that no one can use.

So I stuck to fixed-pipeline OpenGL. Despite being slower on modern devices and not really supported on mobile devices, the GLES1 on Android seems to be okay with what I've done:

While it's still my most favourite achievement to date, it really does look pretty damn awful, and I think it could really do with some shadows...

Time to learn about shaders and friends.

[ view entry ] permalink print article

LÏKE is like LÖVE 0.8, but watered-down and less awesome.
LÏKE is an implementation of a subset of LÖVE features.
LÏKE does have some extensions though, such as live-reloading of assets and scripts and a touch API for touchscreens.
LÏKE is a minimal framework you can use to make 2D games in Lua.
LÏKE works on Windows, Mac OS X, Linux, Android, iOS, QNX (PlayBook) and WebOS.
LÏKE is a self-contained single executable less than 500Kb in size, written in C from scratch using OpenGL, Lua 5.2, PortAudio and the Chipmunk Physics engine.

I made my first game, jmp:err, using LÖVE. The experience of learning Lua and a new framework in a day was great.
Some things about LÖVE annoyed me though, the lack of proper ports to other platforms, the font API and I had disagreements, etc.

So, as things always go, I thought I'd make my own version the next weekend as a challenge, using the API in a "black-box" type approach.
After two days of crazily bad coding, I got my game running in my own version of the engine, exciting!

The main goal was just to get my game running on Android, but with the groundwork basically done, I figured I would keep on working on it.
I decided to port my bridge tutorial to Lua in an effort to learn "classes" in Lua and get a grips with the physics engine.
One thing lead to another and BAM, LÏKE was born.

See what's currently implemented by visiting the LÏKE page via the link on the sidebar.
Downloads for all platforms to be put up once I get my PC at home running again.

[ view entry ] permalink print article


I touched my first computer at age 16. I almost made a game immediately.
I almost made a game every month of every year for the next 16 years.
There's only so much self-respect you can lose until you just have to prove that you're capable of finishing something.

The time had come where I asked my life for 8 hours of uninterrupted codery goodness, and this is how it went...

(DOWNLOADS are at the bottom)

The game idea:

Something simple that can be finished in 8 hours.
Something that has few actions performable by the player.
Something that can easily have randomly generated levels.
Those infinite jumping games are popular, they only have tilt left and right, they also use the only physics/maths I understand, velocity.
I hate infinite running/jumping games, no sense of accomplishment.
Make a jumping game with a defined set of levels and each level must have a finishing point/goal.
For some reason, people like competing, so make the levels timed.

The engine:

I've looked at many frameworks in the past few years, I've also ALMOST finished quite a few myself.
The LÖVE framework seemed to have a simple enough API to get a grips with, and even though I'm not that familiar with Lua, it didn't seem like it would take long to learn.
10 minutes of messing around with the engine and its examples and I was sold. For prototyping, it was gold.
And if worse came to worst, I could always write my own lightweight framework for all the platforms, and oh hey, I just recently put the Lua engine into Tweenimator to see if I could, I wonder if... NO, FOCUS!

The editor:

Sublime Text setup with a LÖVE "build" command.
Tools->Build System->New Build System
"selector": "main.lua",
"cmd": ["F:/apps/LOVE/love", "$file_path"]

I also used the Lick addition for LÖVE so that every time I saved changes to my code, the game would restart automatically.

The prototype:

107 lines.
The orange rectangle at the bottom is the permanent floor.
The orange square is the player.
The blue tiles are all platforms you can pass through upwards but rebound off when falling.

Bah, this is dull, if you had a level with platforms stacked in a neat center row, everyone would always have the same time, it's impossible to be quicker.
Make it so that the player can SLAM DOWN to hit a platform quicker and thus improve their time.
Hmm, better, but not great.
AHA, make it so that platforms are in two states that the player can switch between, making them only collidable with their current colour!
Muuuch better.
For some reason the dual colours make me think of Tron (and Transformers, and Jumper (hey!) and...)
That's it, I'm going full Tron on this one... while being respectful of IP and copyright and what-not...

The graphics:

No matter what I make, it'll suck.
But I'm also against just leaving things as plain squares.
Well, seeing as I'm Tronning this lot up, may as well make everything glow like a sonofafemaledog. JJ Abrams would be proud.

Open Paint.NET.
Draw something on one layer (text, block, whatever)
Duplicate layer, shift it down and right one.
Change the colour to blue or orange.
Apply Photo->Glow effect to both layers, SHAZAM!

I need something for the background, to parallax scroll, because no game is complete without it.
Think "jumping" as the theme.
That's it, I'm going Tron, may as well print some source code with some "jmp" instructions in.
Open the Tweenimator binary in OllyDbg to see some assembly, holy balls, look at all those jumps at the entry-point, jackpot!
Also, this game shall be called "jmp:err", or "jmperr"

The audio:

No matter what I make, it'll suck.
Go through some chiptunes for ambient music, they all sound too "busy".
Search for randomly generated music.
The Trance Music Generator sounds promising.
Download 3 different MID files from it, find one that might work.
Convert the MID to OGG using VLC with the jRhodes3 soundfont (audio codec) I'm so fond of.
The resulting file is 5MB and a bit busy in the middle... sod it, open it in Audacity and strip it all down to one tiny 10 second looping sample... no one sane is going to keep the music on any way.

Sound effects.
I don't need anything complicated, just a few blips and bloops for jumping, boosting and... menu sounds.
Make some samples using an online sound effects generator.

The menus:

Every game needs menus to be "complete". Damn.
I need text for this. It must look Tronny.
Hello Tr2n.ttf!
Find some menu code examples on the LÖVE forums (can't remember where exactly, sorry source!).
Modify it so that every menu item has a data item associated with it that is displays next to the menu text. This is useful for displaying times next to levels and...
Make options menu for adjusting volumes, modify menu so that it can take left/right as input and call appropriate callbacks.

The persistence:

Time to save/load scores and configuration options.
Hmm, Lua must have some simple function to do this, right?
It does, it's called the Lua Community, huzzah!

The result:

911 lines of slightly mutated ill-tempered spaghetti code.

The game works. There are some features/patterns left to the player to find out, kind of like the first few times you play Mario Brothers.

It's nice to have finally finished a game.
Well. Almost.
It's like this...

The splash screen is vile...
The graphics and audio are terrible...
Showing the code to any living organism would result in it bleeding out of the spaces between its cells.
The gameplay is good enough, but there are so many things I could do to improve it...
There still isn't any real sense of "winning"... you make it to level 10, it shows a different "win" message, then lets you go on forever...

... or at least that's the theory.
Every level is assigned a random seed.
Every level is randomly generated according to this seed, each platform is placed within vertical reach of the previous one.
There is no check to see if the horizontal + vertical distance is reachable... but all of the first 10 levels are completable... either by magic, or by the magic numbers I came up with for platform heights and widths.

I don't know how the game works really.
But I felt myself playing it quite a lot while developing it... something I never expected to do.

Most importantly, I finally came closer to finishing something...

The summary:

Sublime Text with LÖVE build system

LÖVE with helper libraries
- Lick
- Menu.lua
- table saving stuff

- Tr2n.ttf
- OllyDbg for generating some ASM code for my background
- MWSnap (my keyboard doesn't have a print-screen button on it, required for capturing assembly output in OllyDbg)
- Paint.NET

- Sound Effect Generator
- Random Music Generator
- VLC using the jRhodes3 soundfont
- Audacity

The download:

Windows Executable
OSX Executable
Generic .LOVE file for existing LÖVE 0.8+ installations

[ view entry ] permalink print article

Seeing as Google Reader is going out of action in June and that it's the only way I would ever know what was important in my life, I decided it was time to make the Google Reader Replacement I kept threatening to make.

project-GRR will hopefully not only replicate the behaviour of Google Reader that I enjoy, but add useful features such as:
  • Storing all the posts in a database for later retrieval
  • Optionally download the destination page of every news item into a PDF
  • Be able to filter new items, either removing or highlighting them depending on keywords present

The idea is also that you can either use this with a web-server somewhere, or just run it locally purely using the PHP binary and its built-in web-server.

At the moment it's still a work in progress with a few product-breaking bugs, but it definitely has potential.

So for now you can get it off GitHub here:

[ view entry ] permalink print article


Ever since I started to code I wanted to have a game character move from one place to another intelligently, no pre-canned paths.

The A* search algorithm allows you to do this, but due to my age/indifference/attention span I never got round to understanding how it worked ("Heuristics? Weightings? I don't... I... I could just make more particle blood...")

Now that we live in a world filled with free and easily accessible information such as Wikipedia, I could finally find an example that would make sense to me.

With the information on Wikipedia and this article, I gave myself one day to implement the algorithm myself (that last link was the "I can actually do this!" turning point for me, the images with values on were the part that finally made sense to me).

Impatience and Tools

As I didn't have much time to do this, I thought I'd stick with the basics I knew:
Visual Studio Express to develop in C++
SDL and SDL_image for graphics
Tiled for map creation
Paint.NET for tile creation

Seeing as I had absolutely no desire whatsoever to mess around with an XML or JSON library in C++, I made a quick Python script to convert Tiled's native .TMX format into a C++ .H header file containing a class that I could use to get the tile and collision properties of an X,Y co-ordinate.

Using Tiled, tiles in the tileset were given values relating to how costly they were to travel over. I guess this is what they call "weighting". For me it worked out as a multiplier where roads where a multiplier of 1, grass is a multiplier of 20, and sea is a multiplier of 100 (a pure obstacle then really).

So in the end I made diagonal tiles cost just a bit more than travelling across two tiles so it would prefer to keep to the road, and "G" and "H" values would end up being multiplied by the preference value of the current tile.
Tile_Weight = 10,
Tile_Weight_Diagonal = Tile_Weight * 2 + 1,

openTile->G = CostSoFar;
openTile->H = (abs(DestinationX - openTile->X) + abs(DestinationY - openTile->Y)) * Tile_Weight;

openTile->G *= world->map.Cost(openTile->X, openTile->Y);
openTile->H *= world->map.Cost(openTile->X, openTile->Y);


Not too crappy actually.

I had several criteria I wanted a path to follow:
  • A car should prefer to drive on a road
  • A car may drive on grass if it's the only option
  • A car should not take a shortcut by travelling diagonally across a corner tile, i.e., skipping a curved round turn by crossing grass
  • A car can take a shortcut diagonally across grass if it means getting back to the road quicker

As this was all done in a day, I have no doubt that there are issues I haven't found, but I finally understand how it all works and for a small amount of time I felt good about myself.

[ view entry ] permalink print article
